Technical marine propulsion performance documentation

PERFORMANCE & RANGE EVIDENCE

Performance claims need conditions.

Review model-specific records, approved specification states and documented test conditions before comparing propulsion systems or planning a commercial application.

Review published evidence Request test data

EVIDENCE RULE

Only populated, model-specific values from published product records are presented as evidence.

RESULT SCOPE

A product specification is not a promise of speed, range or runtime in every vessel.

BUYER USE

Use the evidence register for evaluation planning, integration review and commercial discussions.

PRODUCT MANUAL RECORDS

Product-manual values, separated from assumptions.

These records use the product parameters currently entered from the IFUNGOO product manual. Fields not documented in the manual are omitted from the comparison.

MODEL-SPECIFIC PARAMETERS

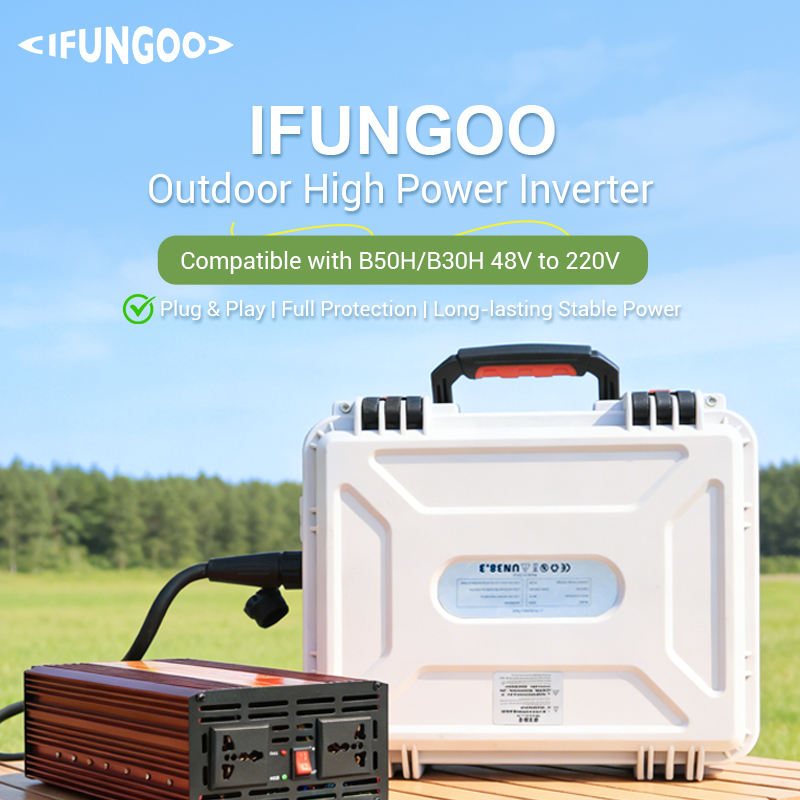

1500W Inverter

Product manual record

A 1500W, 48V-input inverter accessory approved in the current business rules only for B30H and B50H batteries.

Nominal voltage: 48.0 V

Open product record

MODEL-SPECIFIC PARAMETERS

B1 Marine Battery

Product manual record

A 22.2V, 36Ah, 799.2Wh lithium-polymer battery listed for selected Y Series systems.

Nominal voltage: 22.2 V
Battery capacity: 36.0 Ah · 799.2 Wh

Open product record

MODEL-SPECIFIC PARAMETERS

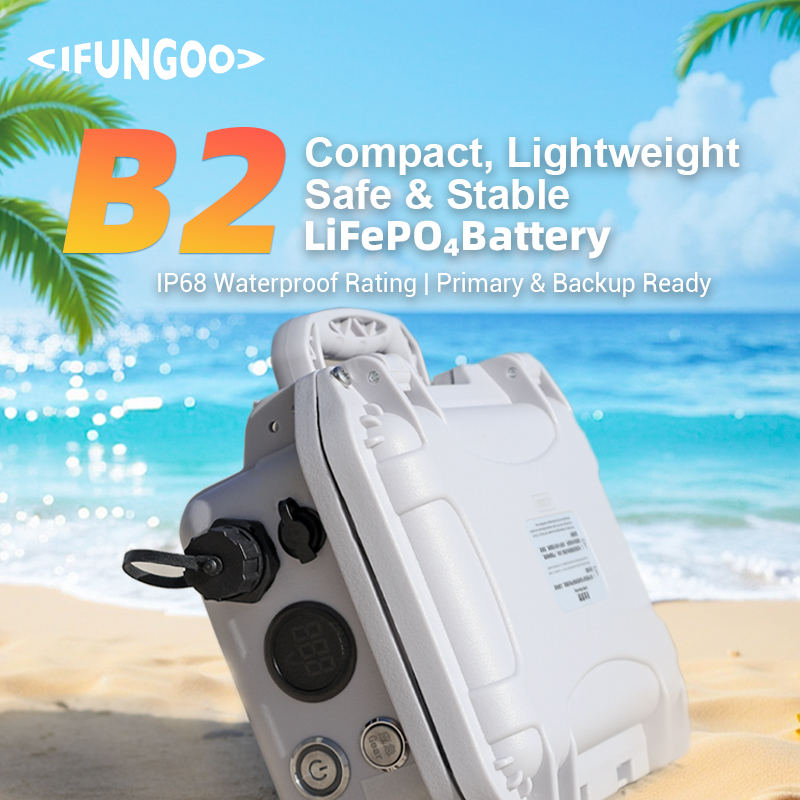

B2 Marine Battery

Product manual record

A 22.4V, 15Ah, 336Wh LiFePO4 battery listed for selected Y Series systems.

Nominal voltage: 22.4 V
Battery capacity: 15.0 Ah · 336.0 Wh

Open product record

MODEL-SPECIFIC PARAMETERS

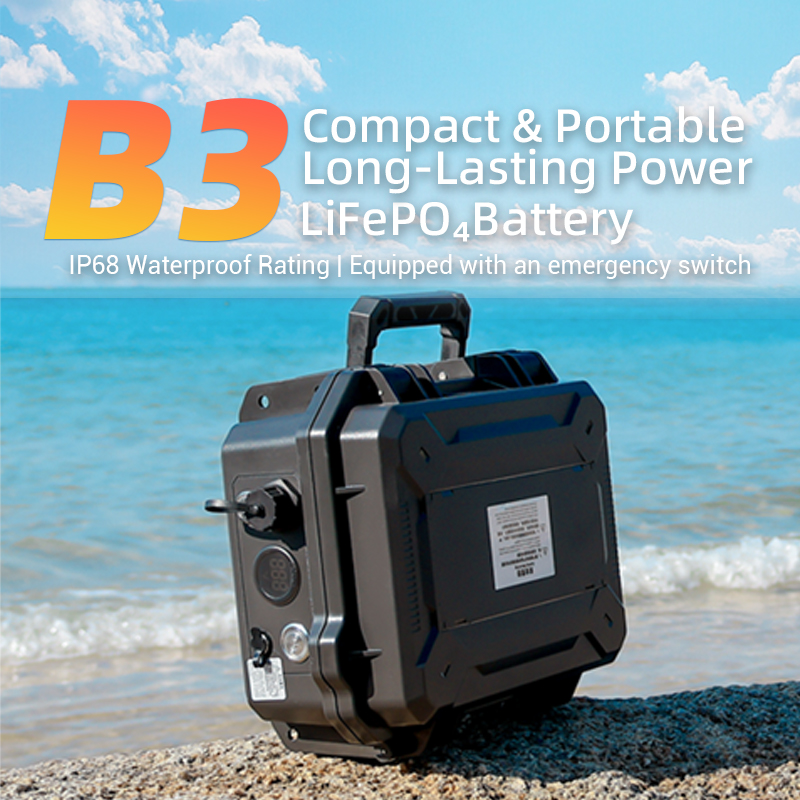

B3 Marine Battery

Product manual record

A 22.4V, 30Ah, 672Wh LiFePO4 battery listed for selected Y Series systems.

Nominal voltage: 22.4 V
Battery capacity: 30.0 Ah · 672.0 Wh

Open product record

MODEL-SPECIFIC PARAMETERS

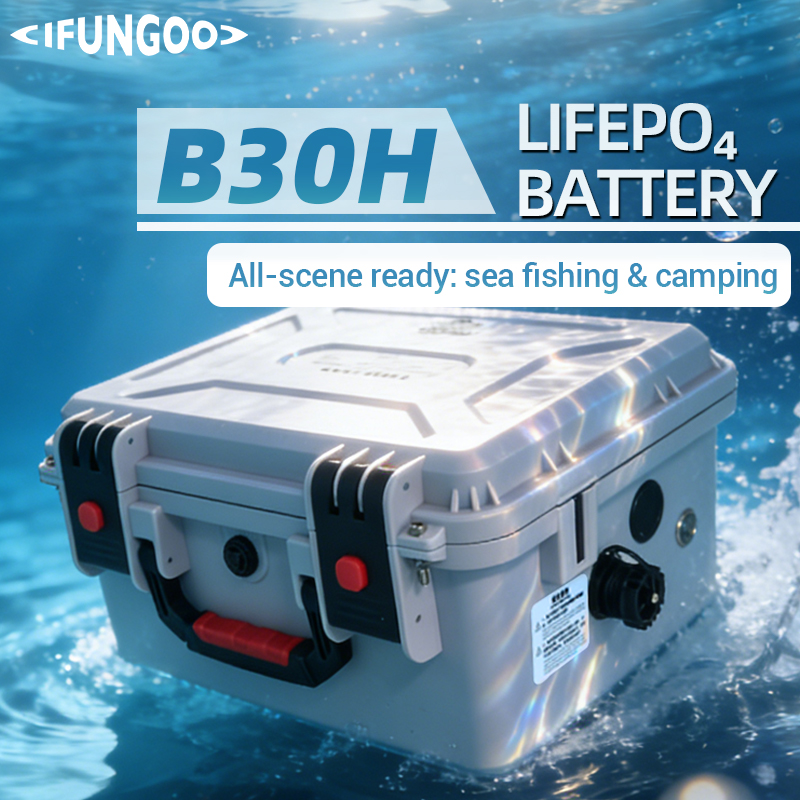

B30H Marine Battery

Product manual record

A 51.2V, 30Ah, 1536Wh LiFePO4 battery listed for H01 and the 1500W inverter.

Nominal voltage: 51.2 V
Battery capacity: 30.0 Ah · 1,536.0 Wh

Open product record

MODEL-SPECIFIC PARAMETERS

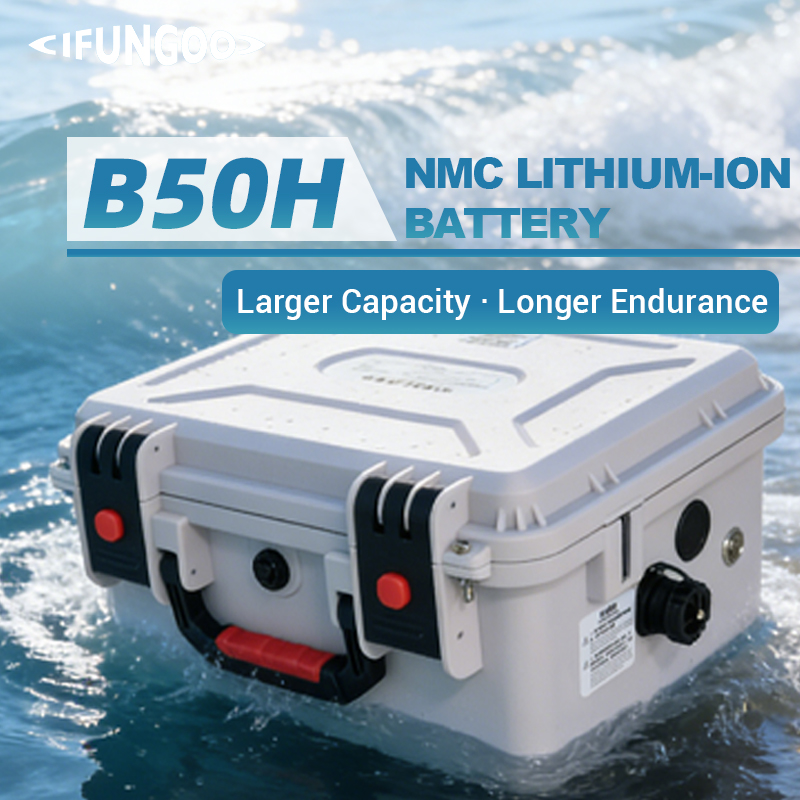

B50H Marine Battery

Product manual record

A 48V, 48Ah, 2304Wh high-capacity marine battery listed for H01 and the 1500W inverter.

Nominal voltage: 48.0 V
Battery capacity: 48.0 Ah · 2,304.0 Wh

Open product record

MODEL-SPECIFIC PARAMETERS

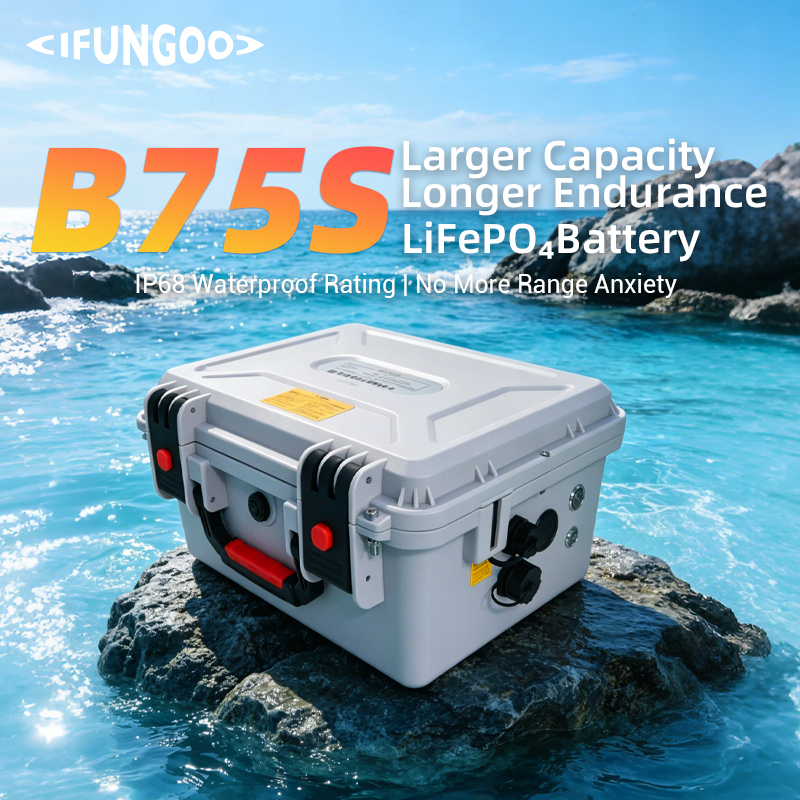

B75S Marine Battery

Product manual record

A 25.6V, 75Ah, 1920Wh LiFePO4 battery listed for selected Y Series systems.

Nominal voltage: 25.6 V
Battery capacity: 75.0 Ah · 1,920.0 Wh

Open product record

MODEL-SPECIFIC PARAMETERS

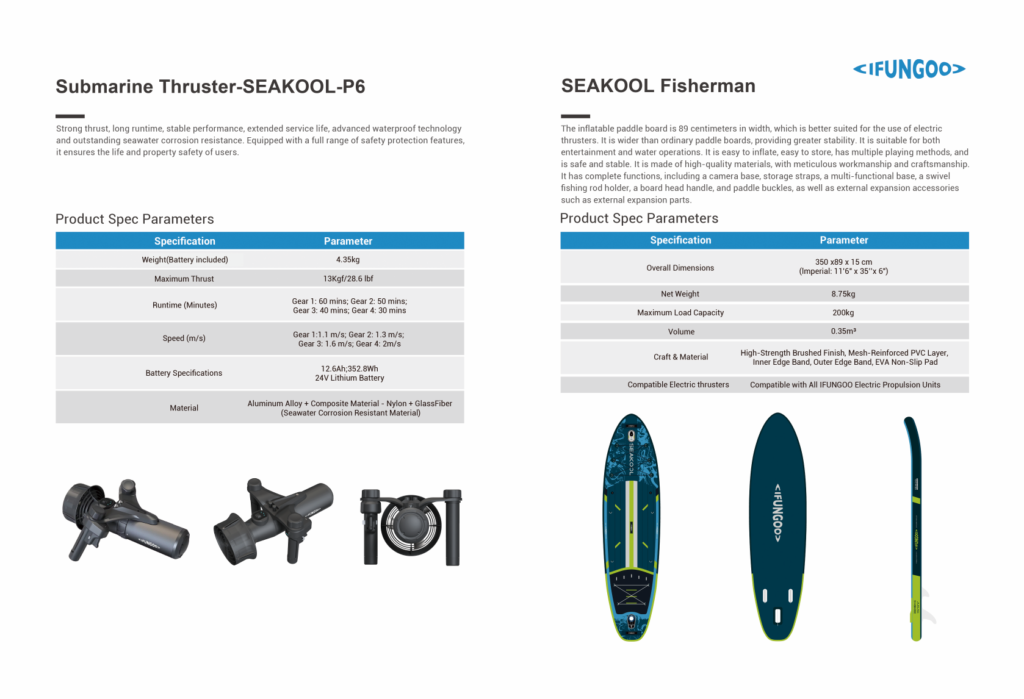

SEAKOOL P6 Submarine Thruster

Product manual record

A self-contained underwater thruster documented at 13 kgf maximum thrust with an integrated 24V, 12.6Ah, 352.8Wh lithium battery.

Nominal voltage: 24.0 V
Battery capacity: 12.6 Ah · 352.8 Wh

Open product record

CONDITIONED COMPARISON

A chart is useful only when its evidence is traceable.

The chart below compares populated rated-power records only. It is not a speed, range or runtime test because no test-condition fields are inferred from product specifications.

PUBLISHED RATED POWER

Model record comparison

No populated rated-power record is currently available for charting. Request the applicable model evidence before making a performance comparison.

Chart source is limited to the linked product record. Test version, vessel, battery configuration, environment and measurement method are not represented unless separately documented.

TEST BACKGROUND

The result belongs to the whole test system.

Performance and range can change when one part of the test setup changes. Every commercial claim should retain the following context.

01 · PROPULSION

Model and version

Record the exact product model, revision or version, specification value and source record.

02 · ENERGY

Battery configuration

Voltage, capacity, battery model, state of charge, temperature and power limits can change delivered power.

03 · VESSEL

Load, hull and installation

Total load, hull geometry, trim, mounting depth, alignment and propeller condition affect efficiency.

04 · ENVIRONMENT

Water and operation

Wind, current, waves, operating mode, throttle profile and measurement method must remain attached to the result.

METHODS & DOCUMENTS

Use the document register as the source trail.

Open each document record to review its scope, applicable products, issuer, status and file before using it in a sales, compliance or integration discussion.

DOCUMENT RECORD

H01 + B50H CE RED Declaration of Conformity

Third-party Declaration of Conformity for the H01 electric thruster with B50H battery under the EU Radio Equipment Directive.…

Review method and scope DOCUMENT RECORD

Y04 + B2 FCC Part 15B Supplier’s Declaration of Conformity

Third-party Supplier's Declaration of Conformity covering FCC Part 15 Subpart B Class B for the Y04 electric thruster…

Review method and scope DOCUMENT RECORD

Y04 + B2 CE RED Declaration of Conformity

Third-party Declaration of Conformity for the Y04 electric thruster with B2 battery under the EU Radio Equipment Directive.…

Review method and scope DOCUMENT RECORD

Y02 FCC Part 15B Supplier’s Declaration of Conformity

Third-party Supplier's Declaration of Conformity covering FCC Part 15B for the Y02 electric thruster.

Review method and scope DOCUMENT RECORD

Y02 CE EMC Declaration of Conformity

Third-party Declaration of Conformity for the Y02 electric thruster under the EU Electromagnetic Compatibility Directive.

Review method and scope DOCUMENT RECORD

Y01 FCC Part 15B Supplier’s Declaration of Conformity

Third-party Supplier's Declaration of Conformity covering FCC Part 15B for the Y01 electric thruster.

Review method and scope

DATA REQUEST

Need a result for your vessel?

Send the target model, battery configuration, vessel type, total load, installation arrangement, operating mode and intended market. IFUNGOO can identify which evidence is available and which conditions still require confirmation.
